离心泵系列: 当前位置：首页 > 产品展示 > 离心泵系列

CDL/CDLF多级离心泵

过流材质： 304/304L、316/316L不锈钢、
驱动方式：电机直接驱动、变频电机驱动
密封形式：机械密封、

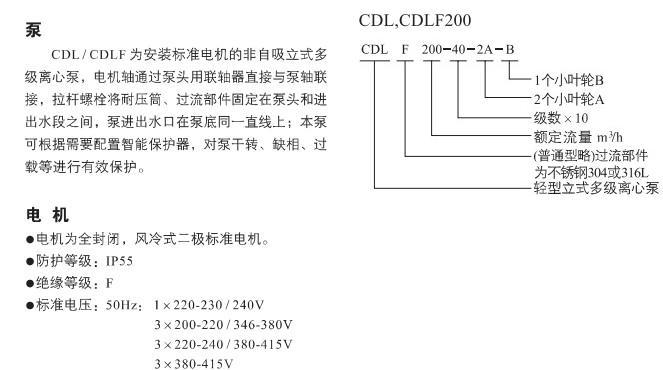

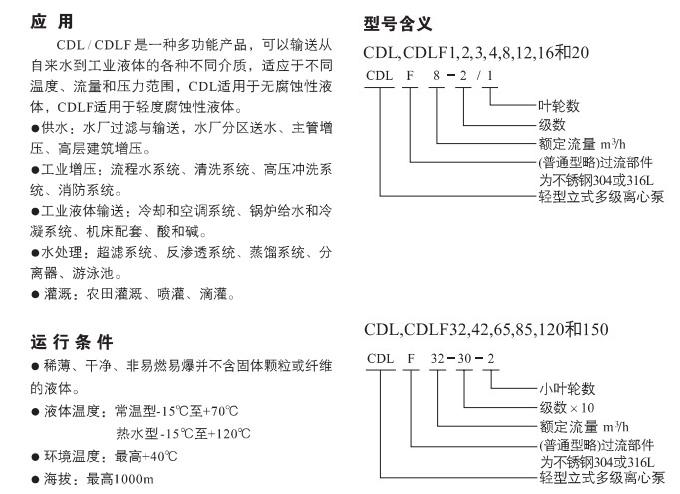

产品特性：CDL、CDLF属于立式多级离心泵，适应输送介质粘度类似于水的各种液体。

营销总部电话：021-56378177日耐优势：质量稳定，常规产品全部现货供应各种材质、非常规产品皆可订做

产品概述
性能参数

型号	扬程(m)	流量(m³/h)	电机功率(KW)	转速(r/min)

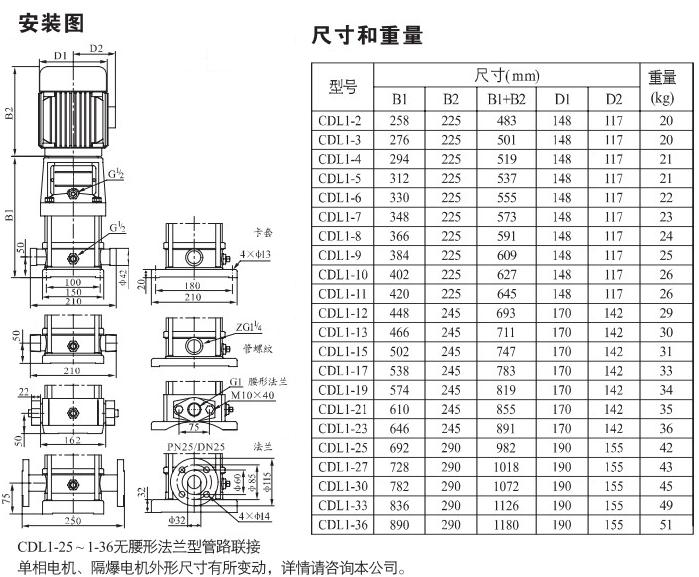

CDL1-2	11.5	1	0.37	2900
CDL1-3	17	1	0.37	2900
CDL1-4	22.5	1	0.37	2900
CDL1-5	28	1	0.37	2900
CDL1-6	33.5	1	0.37	2900
CDL1-7	39	1	0.37	2900
CDL1-8	45	1	0.55	2900
CDL1-9	51	1	0.55	2900
CDL1-10	57	1	0.55	2900
CDL1-17	95	1	1.1	2900
CDL1-19	106	1	1.1	2900
CDL1-21	117	1	1.1	2900
CDL1-23	128	1	1.1	2900
CDL1-25	139	1	1.5	2900
CDL1-27	150	1	1.5	2900
CDL1-30	166	1	1.5	2900
CDL1-33	183	1	2.2	2900
CDL1-36	200	1	2.2	2900

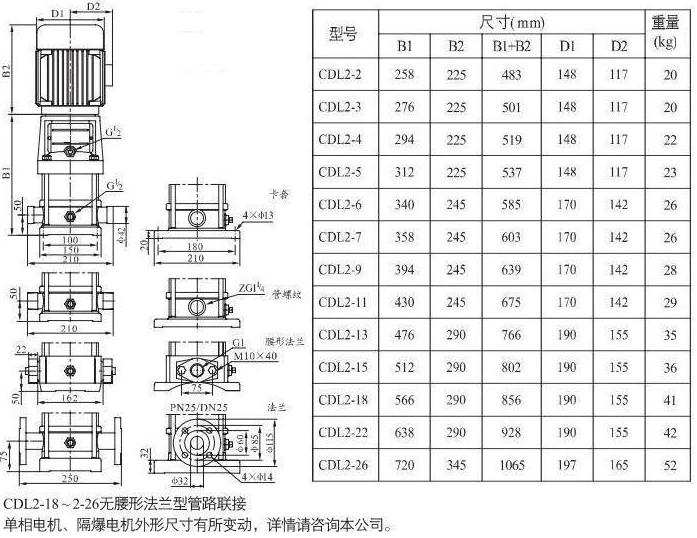

CDL2-2	15	2	0.37	2900
CDL2-3	22	2	0.37	2900
CDL2-4	30	2	0.55	2900
CDL2-5	37	2	0.55	2900
CDL2-6	45	2	0.75	2900
CDL2-7	52	2	0.75	2900
CDL2-9	67	2	1.1	2900
CDL2-11	82	2	1.1	2900
CDL2-13	98	2	1.5	2900
CDL2-15	112	2	1.5	2900
CDL2-18	136	2	2.2	2900
CDL2-22	165	2	2.2	2900
CDL2-26	198	2	3.0	2900
CDL3-2	9	3	0.37	2900
CDL3-3	14	3	0.37	2900
CDL3-4	19	3	0.37	2900
CDL3-5	23	3	0.37	2900
CDL3-6	28	3	0.55	2900
CDL3-7	32	3	0.55	2900
CDL3-8	37	3	0.75	2900
CDL3-9	42	3	0.75	2900
CDL3-10	47	3	0.75	2900
CDL3-11	51	3	1.1	2900
CDL3-12	55	3	1.1	2900
CDL3-13	60	3	1.1	2900
CDL3-15	69	3	1.1	2900
CDL3-17	79	3	1.5	2900
CDL3-19	88	3	1.5	2900
CDL3-21	98	3	2.2	2900
CDL3-23	107	3	2.2	2900
CDL3-25	116	3	2.2	2900
CDL3-27	124	3	2.2	2900
CDL3-29	133	3	2.2	2900
CDL3-31	142	3	3	2900
CDL3-33	151	3	3	2900
CDL3-36	168	3	3	2900
CDL4-2	15	4	0.37	2900
CDL4-3	24	4	0.55	2900
CDL4-4	32	4	0.75	2900
CDL4-5	40	4	1.1	2900
CDL4-6	48	4	1.1	2900
CDL4-7	56	4	1.5	2900
CDL4-8	64	4	1.5	2900
CDL4-10	81	4	2.2	2900
CDL4-12	95	4	2.2	2900
CDL4-14	112	4	3	2900
CDL4-16	129	4	3	2900
CDL4-19	153	4	4	2900
CDL4-22	178	4	4	2900

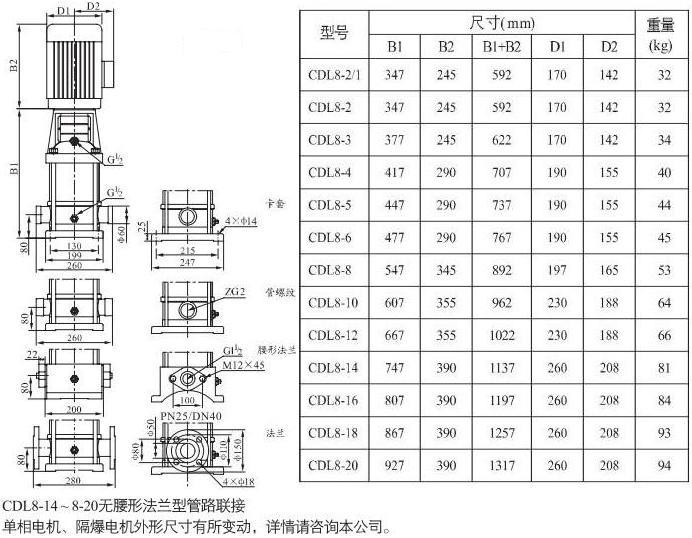

CDL8-2/1	9	8	0.75	2900
CDL8-2	18	8	0.75	2900
CDL8-3	27	8	1.1	2900
CDL8-4	36	8	1.5	2900
CDL8-5	45	8	2.2	2900
CDL8-6	54	8	2.2	2900
CDL8-8	73	8	3.0	2900
CDL8-10	92	8	4.0	2900
CDL8-12	111	8	4.0	2900
CDL8-14	130	8	5.5	2900
CDL8-16	148	8	5.5	2900
CDL8-18	167	8	7.5	2900
CDL8-20	186	8	7.5	2900
CDL12-2	20	12	1.5	2900
CDL12-3	30	12	2.2	2900
CDL12-4	40	12	3	2900
CDL12-5	50	12	3	2900
CDL12-6	60	12	4	2900
CDL12-7	70	12	5.5	2900
CDL12-8	80	12	5.5	2900
CDL12-9	91	12	5.5	2900
CDL12-10	101	12	7.5	2900
CDL12-12	121	12	7.5	2900
CDL12-14	141	12	11	2900
CDL12-16	162	12	11	2900
CDL12-18	183	12	11	2900

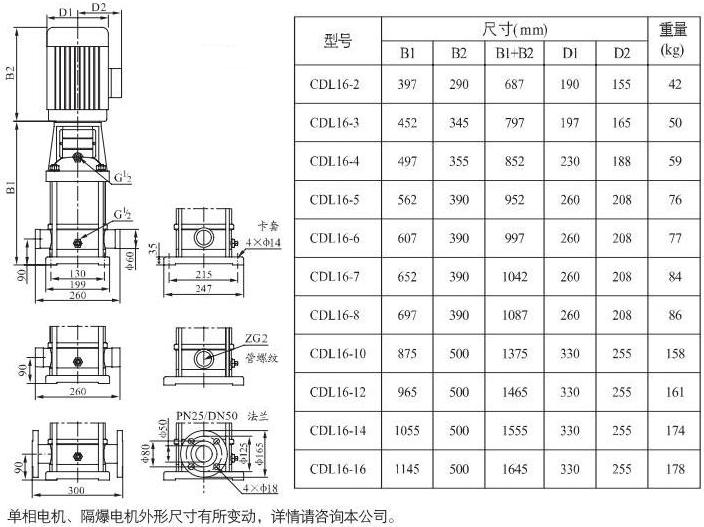

CDL16-2	22	16	2.2	2900
CDL16-3	34	16	3.0	2900
CDL16-4	46	16	4.0	2900
CDL16-5	58	16	5.5	2900
CDL16-6	70	16	5.5	2900
CDL16-7	82	16	7.5	2900
CDL16-8	94	16	7.5	2900
CDL16-10	118	16	11	2900
CDL16-12	141	16	11	2900
CDL16-14	166	16	15	2900
CDL16-16	189	16	15	2900

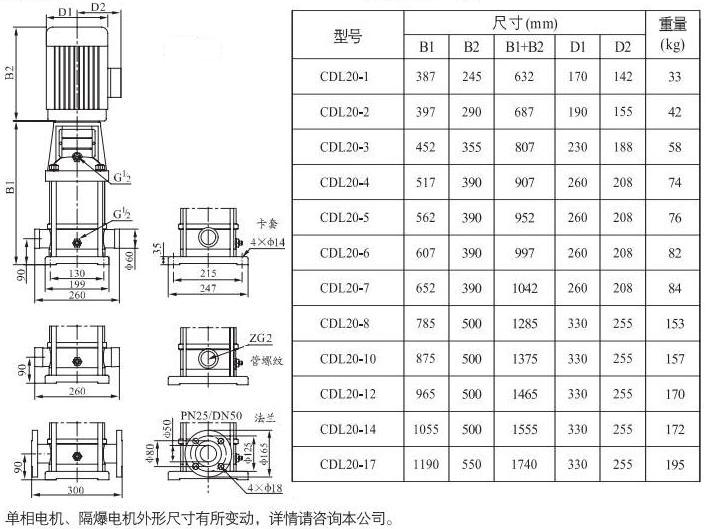

CDL20-1	10	20	1.1	2900
CDL20-2	23	20	2.2	2900
CDL20-3	35	20	4.0	2900
CDL20-4	47	20	5.5	2900
CDL20-5	58	20	5.5	2900
CDL20-6	70	20	7.5	2900
CDL20-7	82	20	7.5	2900
CDL20-8	94	20	11	2900
CDL20-10	118	20	11	2900
CDL20-12	142	20	15	2900
CDL20-14	166	20	15	2900
CDL20-17	202	20	18.5	2900

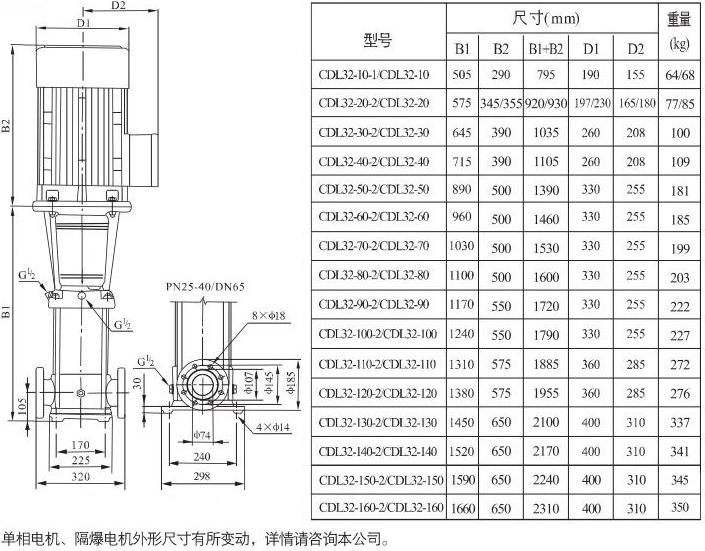

CDL32-10-1	9	32	1.5	2900
CDL32-10	13	32	2.2	2900
CDL32-20-2	20	32	3.0	2900
CDL32-20	27	32	4.0	2900
CDL32-30-2	33	32	5.5	2900
CDL32-30	40	32	5.5	2900
CDL32-40-2	46	32	7.5	2900
CDL32-40	53	32	7.5	2900
CDL32-50-2	60	32	11	2900
CDL32-50	67	32	11	2900
CDL32-60-2	74	32	11	2900
CDL32-60	81	32	11	2900
CDL32-70-2	88	32	15	2900
CDL32-70	95	32	15	2900
CDL32-80-2	102	32	15	2900
CDL32-80	109	32	15	2900
CDL32-90-2	117	32	18.5	2900
CDL32-90	124	32	18.5	2900
CDL32-100-2	131	32	18.5	2900
CDL32-100	138	32	18.5	2900
CDL32-110-2	146	32	22	2900
CDL32-110	153	32	22	2900
CDL32-120-2	160	32	22	2900
CDL32-120	167	32	22	2900
CDL32-130-2	174	32	30	2900
CDL32-130	181	32	30	2900
CDL32-140-2	189	32	30	2900
CDL32-140	196	32	30	2900
CDL42-10-1	16	42	3.0	2900
CDL42-10	20	42	4.0	2900
CDL42-20-2	32	42	5.5	2900
CDL42-20	41	42	7.5	2900
CDL42-30-2	52	42	11	2900
CDL42-30	61	42	11	2900
CDL42-40-2	73	42	15	2900
CDL42-40	81	42	15	2900
CDL42-50-2	93	42	18.5	2900
CDL42-50	101	42	18.5	2900
CDL42-60-2	113	42	22	2900
CDL42-60	122	42	22	2900
CDL42-70-2	134	42	30	2900
CDL42-70	142	42	30	2900
CDL42-80-2	154	42	30	2900
CDL42-80	162	42	30	2900
CDL42-90-2	174	42	30	2900
CDL42-90	183	42	37	2900
CDL42-100-2	194	42	37	2900
CDL42-100	203	42	37	2900
CDL42-110-2	217	42	45	2900
CDL42-110	225	42	45	2900
CDL42-120-2	238	42	45	2900
CDL42-120	247	42	45	2900
CDL42-130-2	259	42	45	2900

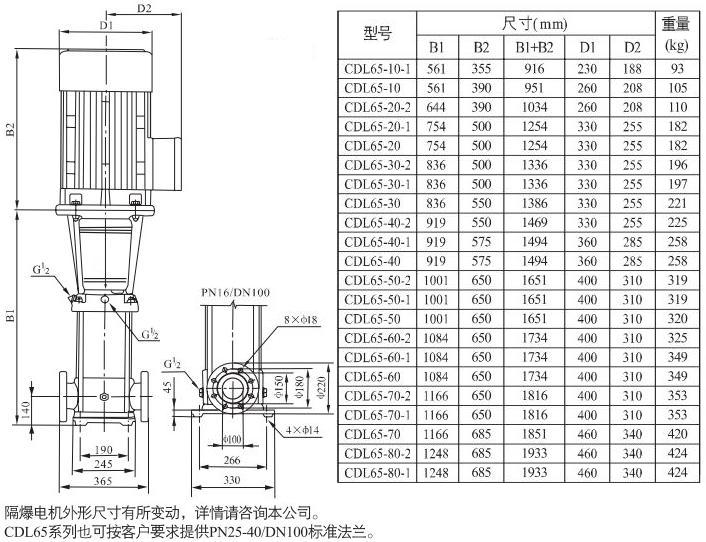

CDL65-10-1	13	65	4.0	2900
CDL65-10	20	65	5.5	2900
CDL65-20-2	26	65	7.5	2900
CDL65-20-1	33	65	11	2900
CDL65-20	40	65	11	2900
CDL65-30-2	46	65	15	2900
CDL65-30-1	53	65	15	2900
CDL65-30	60	65	18.5	2900
CDL65-40-2	66	65	18.5	2900
CDL65-40-1	73	65	22	2900
CDL65-40	80	65	22	2900
CDL65-50-2	88	65	30	2900
CDL65-50-1	95	65	30	2900
CDL65-50	102	65	30	2900
CDL65-60-2	110	65	30	2900
CDL65-60-1	117	65	37	2900
CDL65-60	124	65	37	2900
CDL65-70-2	132	65	37	2900
CDL65-70-1	139	65	37	2900
CDL65-70	146	65	45	2900
CDL65-80-2	154	65	45	2900
CDL65-80-1	161	65	45	2900
CDL85-10-1	14	85	5.5	2900
CDL85-10	20	85	7.5	2900
CDL85-20-2	30	85	11	2900
CDL85-20	41	85	15	2900
CDL85-30-2	52	85	18.5	2900
CDL85-30	64	85	22	2900
CDL85-40-2	75	85	30	2900
CDL85-40	86	85	30	2900
CDL85-50-2	98	85	37	2900
CDL85-50	110	85	37	2900
CDL85-60-2	122	85	45	2900
CDL85-60	134	85	45	2900
CDL120-10	18.5	120	11	2950
CDL120-20-2	28.5	120	15	2950
CDL120-20-1	34.5	120	18.5	2950
CDL120-20	40	120	22	2950
CDL120-30-2	49	120	30	2950
CDL120-30-1	55.5	120	30	2950
CDL120-30	61	120	30	2950
CDL120-40-2	69	120	37	2950
CDL120-40-1	76	120	37	2950
CDL120-40	81	120	45	2950
CDL120-50-2	90	120	45	2950
CDL120-50-1	97	120	45	2950
CDL120-50	101.5	120	55	2950
CDL120-60-2	110	120	55	2950
CDL120-60-1	118	120	55	2950
CDL120-60	123	120	75	2950
CDL120-70-2	130	120	75	2950
CDL120-70-1	137.5	120	75	2950
CDL120-70	145	120	75	2950
CDL150-10-1	12.5	150	11	2950
CDL150-10	18.5	150	15	2950
CDL150-20-2	27.5	150	18.5	2950
CDL150-20-1	35	150	22	2950
CDL150-20	40	150	30	2950
CDL150-30-2	49	150	30	2950
CDL150-30-1	56	150	37	2950
CDL150-30	63	150	37	2950
CDL150-40-2	70.5	150	45	2950
CDL150-40-1	77	150	45	2950
CDL150-40	84	150	50	2950
CDL150-50-2	92	150	55	2950
CDL150-50-1	99	150	75	2950
CDL150-50	106.5	150	75	2950
CDL150-60-2	112	150	75	2950
CDL150-60-1	120.5	150	75	2950
CDL150-60	130	150	75	2950

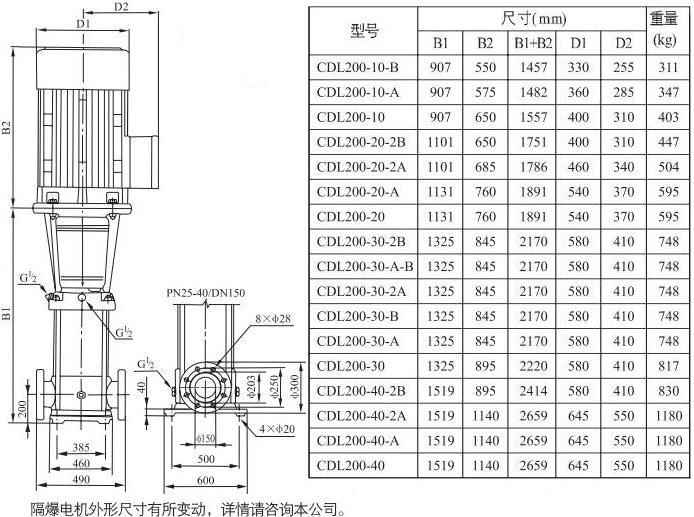

CDL200-10-B	20	200	18.5	2950
CDL200-10-A	24	200	22	2950
CDL200-10	34	200	30	2950
CDL200-20-2B	41	200	37	2950
CDL200-20-2A	49	200	45	2950
CDL200-20-A	59	200	55	2950
CDL200-20	69	200	55	2950
CDL200-30-2B	75	200	75	2950
CDL200-30-A-B	79	200	75	2950
CDL200-30-2A	84	200	75	2950
CDL200-30-B	89	200	75	2950
CDL200-30-A	93	200	75	2950
CDL200-30	103	200	90	2950
CDL200-40-2B	110	200	90	2950
CDL200-40-2A	118	200	110	2950
CDL200-40-A	128	200	110	2950
CDL200-40	138	200	110	2950
